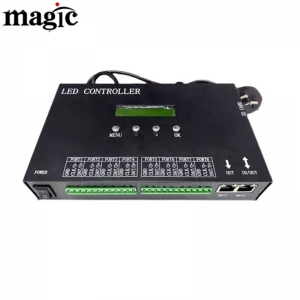

H807SA has 8 outputs, supports maximum 8196 pixels, it Support Art-Net protocol and can work with DMX console or set address for DMX chips .H807SA also can add or delete DAT files through the LAN.
Ⅱ.Features:
1. Eight output ports to control up to 8192 pixels. The maximum control point per port is 1024.
2. The SD card supports FAT32 and FAT16 formats and allows up to 64 DAT files.
3. It can be controlled synchronously by the LAN. You can switch files by sending UDP instructions to the network port 2, or obtain the serial number of the current playing file.
4. It can connect to DMX console, support RGBW, replace files, adjust speed and brightness, and respond quickly.
5. Support art net protocol, and can directly use madrix, jinx and other software supporting art net.
6. Support the encryption function of limiting power on times.
7. DMX chip addressing is supported, with counting points and internal control test functions.
8. It can be connected and detached. It can be directly connected to computer network card, router or main controller.
9. Support online firmware upgrade.
10. Set sculpt of DAT to support DAT files of different shapes.
11. W can be inserted.
12. Tm1812 and synchronous chip can output 16 ports.
