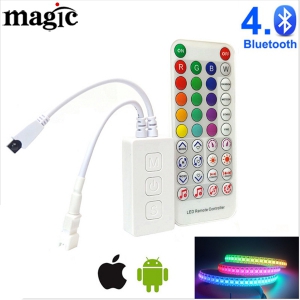

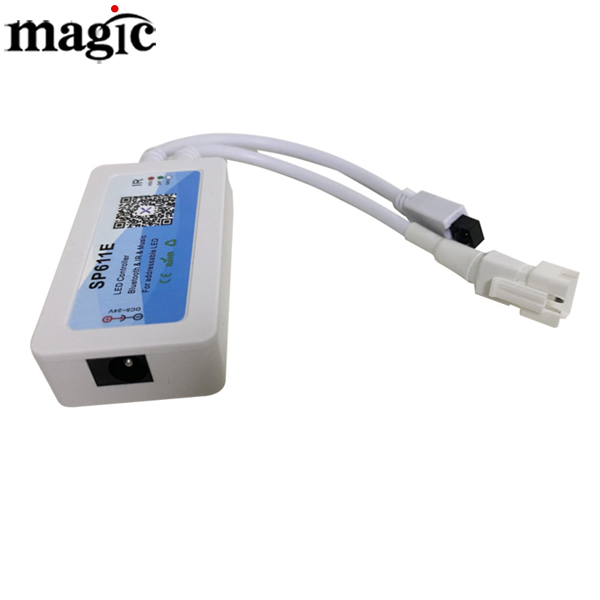

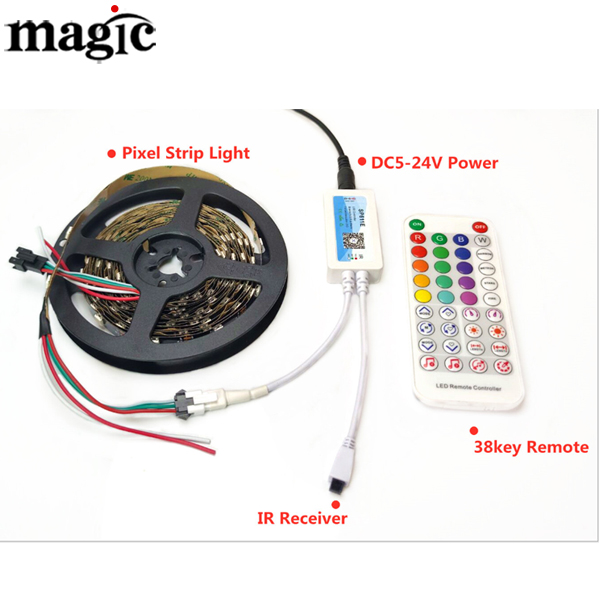

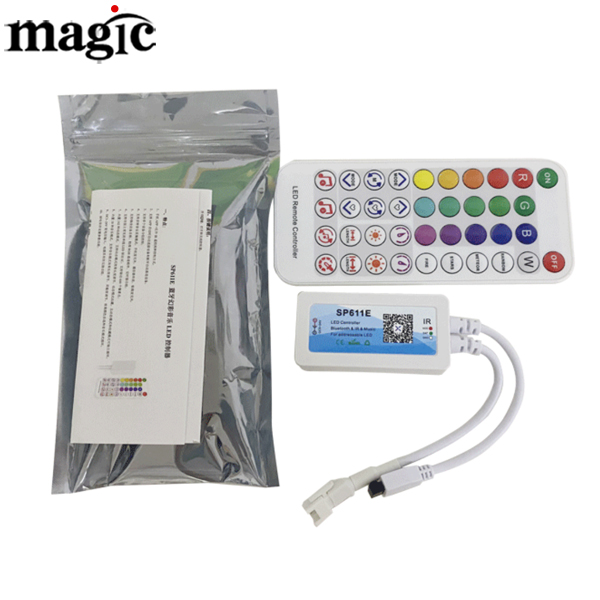

SP611E Bluetooth Music Pixel LED Controller
Features:
1. Supports both APP control and IR remote control;
2. Support automatic device connection and automatic re-connection when the APP turns on;
3. Support multiple devices grouping control;
4. Multiple sound collection methods: phone mic, player streaming, on-board mic;
5. Support modifying the device name, calibrate the RGB channel sequence, and timer function;
6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels;
7. Built-in 142 dynamic effects, effect length adjustable, with favour effects collecting function;
8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
9. DC5~24V wide voltage input, the power supply has anti-reverse connection function;
10. Automatic saving function for setting parameters.
2. App Functions:
SP611E supports being controlled by APP, botth IOS and Android version are available;Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later;
you can search "SceneX" in the App Store or Google Play to find the app, or scan the QR code to download and install.

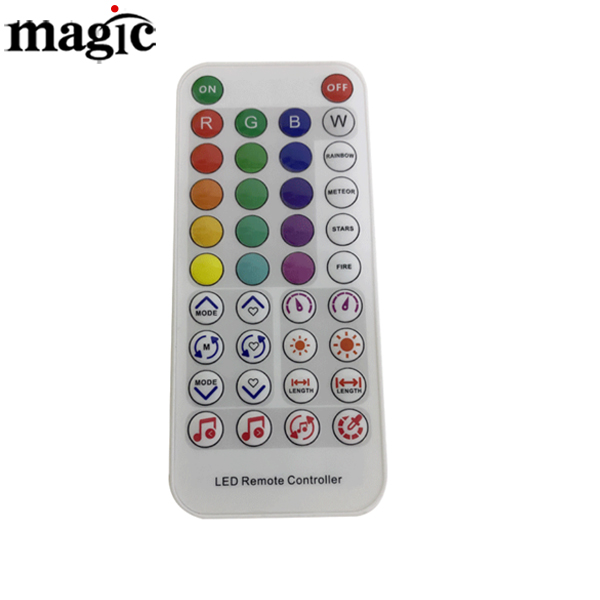

Button Functions:
On/Off button : Turning on or off the LED light;
Mode button M : Switching the effects;
Speed button S : Adjusting the speed of the non-music effects.
Working voltage:DC5V~24V
Dimensions:60mm*30mm*14mm(not including the wires)
Operating current:5mA~18mA
Working temperature:-20℃~60℃
Youtube link: https://youtu.be/3KvemMF4uNU
