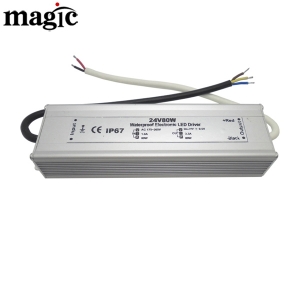

| Characteristics | |||
| Waterproof level:IP67 | |||
| The input voltage range :170~264VAC | |||
| Small volume ,high efficiency. | |||
| Protecting characteristic:over load/short circuit . | |||
| 100% full load burn- in testing. | |||
| Quality assurance : 2 years | |||
| Size:190*49*34mm | |||
| Specifications | |||
| Model | HY-80-12 | HY-80-24 | |
| Output | DC output voltage | 12V | 24V |
| Output voltage tolerance | ±5% | ±5% | |
| Rated output current | 6.66A | 3.33A | |
| Output current range | 0~6.66A | 0~3.33A | |
| Output power | 80W | 80W | |
| Ripple &noise | 100mVp-p | 150mVp-p | |
| DC adjustable range | ±10% | ±10% | |
| Setup rise and hold up time | 200ms,100ms,30ms. | ||
| Input | Input voltage range | 170～264VAC 47～63Hz,240～370VDC | |
| AC input current | 0.9A/230VAC | ||
| Efficiency | 78% | 78% | |
| AC inrush current | Cold start current 36A/230V | ||
| Leakage current | ＜1mA/240VAC | ||
| Protecting characteristic | Over load protection | 115%~135% rated output power start the over load protection | |
| Protection mode : Hiccup mode ,auto-recovery | |||
| Over-voltage protection | 115%~135% 115%-135% cut off the output | ||
| auto-recovery | |||
| Over- temp protection | Rectifier≥85℃cut off the output ,auto-recovery | ||
| Environment | Working temperature | -10℃～+60℃;20%～90%RH | |
| (please refer to the Load deduction curve) | |||
| Security | Withstand voltage | Between input and output::1.5KVAC | |
| The input and ground : 1.5KVAC | |||
| The output and ground :0.5KVAC | |||
| Insulation resistance | Between input and output: | ||
| The input and ground, the output and ground: 100M 0hms /500VDC | |||
| Others | Weight/ Packing | 0.55kg/30PCS | |
| Remark: | |||
| 1..All parameters at the unspecified condition, should be measured in the 230V input voltage ,at the rated load and 25℃ | |||
| 2. Ripple and noise voltage is measured at the end of 20MHz Bandwidth of oscilloscope ,12 inch Twisted pair plus 0.1u and 47u | |||
| 3. Tolerance is the sum of voltage setting error,voltage regulation rate and current regulation rate | |||
