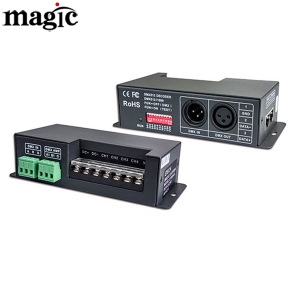

LT-840-6A with the standard RDM remote device management protocal,supports DMX512 signal bi-directional
communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Equipped with DMX standard 3-pin XLR, RJ45, green terminal interface. Realize
0-100% dimming or different lighting effect; workable with single color, bi-color, RGB or RGBW LED lamps.
Product Parameter: Input Signal:DMX512, RDM
Input Voltage:5~24Vdc
Current Load:6A × 4CH Max. 24A
Output Power:0~30W...144W) × 4CH Max. 576W
DMX512 Socket:3-pin XLR, RJ45, Green Terminal
Dimming Range:0~100%
Protection:Short circuit / Over current
Working Temp.:-30 ~65 ℃
Dimensions:L156 × W78 × H40(mm)
Package Size:L180 × W82 × H48(mm)
Weight (G.W.): 445g
