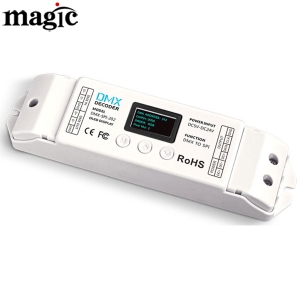

DMX-SPI Decoder DMX-SPI-202 V6.0 converts DMX512/RDM Signal into SPI(TTL) digital signal and controls most of the pixel LED lights in the market.With the standard RDM remote device management protocol.
DMX digital console can control every channel of the LED Lights, realizing 0~100% dimming or defining all sorts of changing effects.
With OLED display,it‘s easy to select the IC Type, RGB sequence,etc. built0in 16 channing modes,would be worked as a signal SPI controller independently.
An additional function in DMX-SPI-202 V6.0: connect to the DMX Console, 6(8) times of the LED lights can be controlled and the Max 1024 pixel can be controlled by 1pcs DMX-SPI-202 when virtual pixel function.
DMX-SPI-202 V6.0 can realize parameters setting and firmare updating by long-range setting when work with LTECH RDM editor,it is convenient for current using and later versions upgrading.
Parameter:
Input Signal: DMX512/RDM
Input voltage: 5V,12V,24VDC
Power consumption: 1W
Output signal: SPI (TTL)(Compatible with WS2811,WS2812,UCS1903,UCS1909,UCS2903,UCS2909,UCS2912,TM1803,TM1803,TM1809,TM1812 Driving IC
Self-testing Mode:16
Control quantity: RGB 170 pixels（512CH）,
RGBW 128 Pixels (512CH)
Virtual pixel ：RGB 1-6 times,max 1024 pixels
RGBW 1-8 times,max 1024 pixels
Decoding channels: 512 channels /unit
Dimming Range:0~100%
Working Temperature: -30℃ ~55℃
Dimensions: L127*W44*H30 (MM)
Package size: L178*W48*H33 mm
Weight(G.w.):140g
